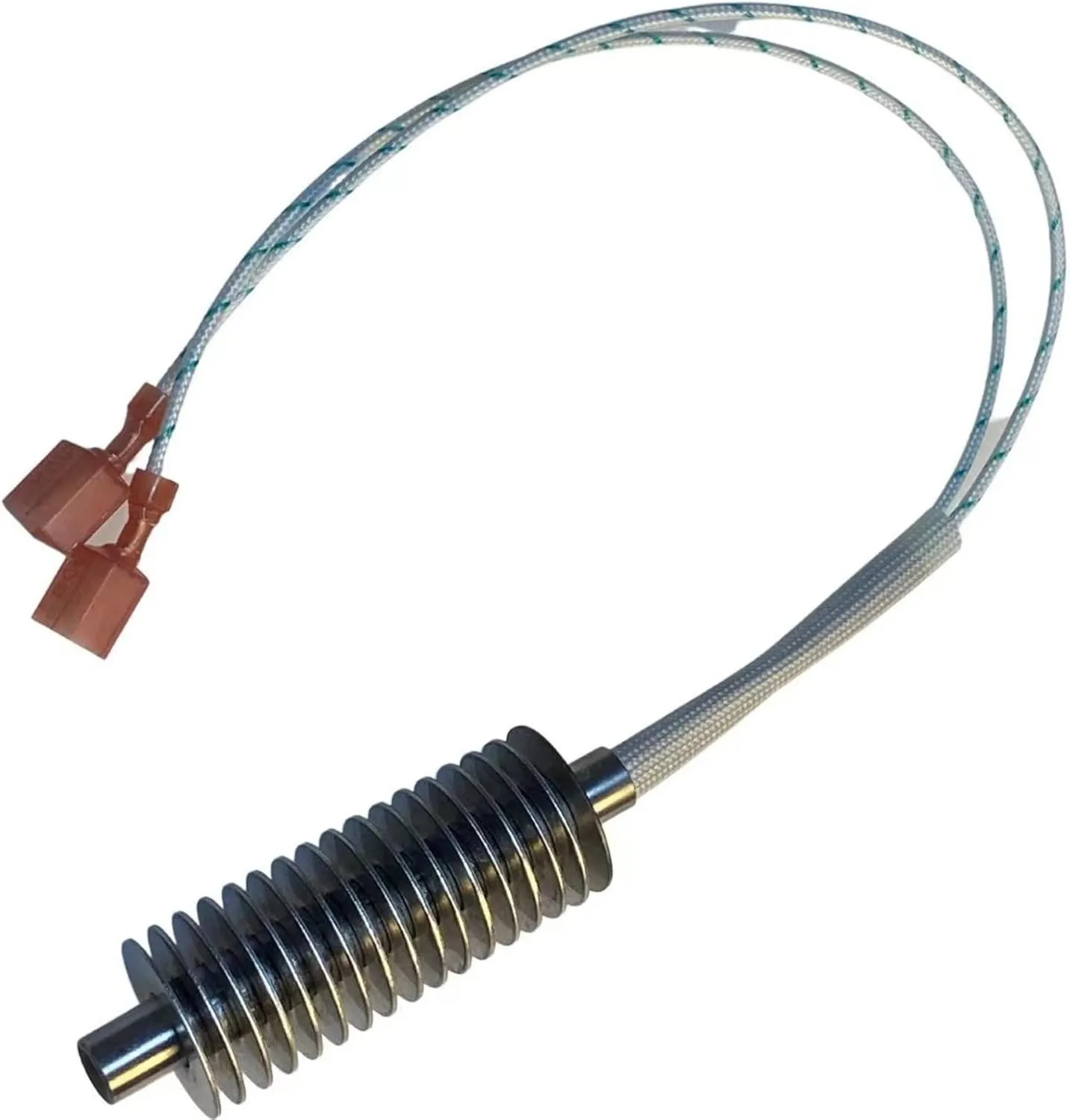

- Highest Quality Replacement Igniter.
- Watts: 306, Length: 3.25", Width: 3/8" Rod With 17 Fins, Connectors: Male Spades.
- This 306 Watt igniter is compatible with all automatic ignition Harman stoves. Was formally a 17 Fin. Compatible with all Harman models listed. P35i, P43, P61A, P68, Advance, Accentra, 52i, XXV, PF100, PB105.
- Package include: 1Pc x 306 Watt Igniter. If it fails on your stove, feel free toe. contact us any time.
Part Number 3-20-677200：
Absolute 43
Absolute 63
Accentra 52I
Accentra 52i-TC
Accentra FS (Accentra Cast)
Accentra Insert
Advance
Allure 50
Harman Pellet
P35I Insert
P61A
Specifications:
Watts: 306
Length: 3.25"
Width: 3/8" Rod With 17 Fins.
Connectors: Male Spades
Replaces part numbers: 1-10-06620, 3-20-06783, 3-20-677200.
Troubleshooting Igniters:
Igniter failure can be verified on one of three ways.
1. start your stove and visually look for the orange glow;
2. physically feel around in the burn pot after the stove has been on for a few minutes to “feel” for heat being generated.
3. Use a DMM (Digital Multi-Meter). Gain access to the igniter and remove it from the stove or insert. With the igniter removed from the stove, you will need to look over the part to find the rated watts.
