- ADJUSTABLE AIR PRESSURE:The watch waterproof tester features an adjustable pressure range of 0.3 to 6 bar(approx.0.3 to 6 atm),allowing watch repairers to effectively test the waterproof performance of various watches by creating a pressure difference between the inside and outside of the test watch.
- EFFICIENT PRESSING:The watch waterproof tester includes an efficient pressing mechanism that aids in securely closing waterproof watch cases.Its user-friendly design minimizes the risk of damaging the watch or injuring your hands during the pressing process.
- HIGH-QUALITY REPAIR TOOL:This essential tool for watch repair masters is designed to flexibly secure watches without causing scratches or marks on their surfaces.The unique appearance and quality craftsmanship make it a reliable addition to any watch shop's toolkit.
- VERSATILE APPLICATIONS:The watch waterproof tester is suitable for most watches and is a necessity for watch repairmen and shops.It also makes an excellent gift for fathers or relatives who are watch enthusiasts,ensuring high-quality results in watch maintenance and repair.

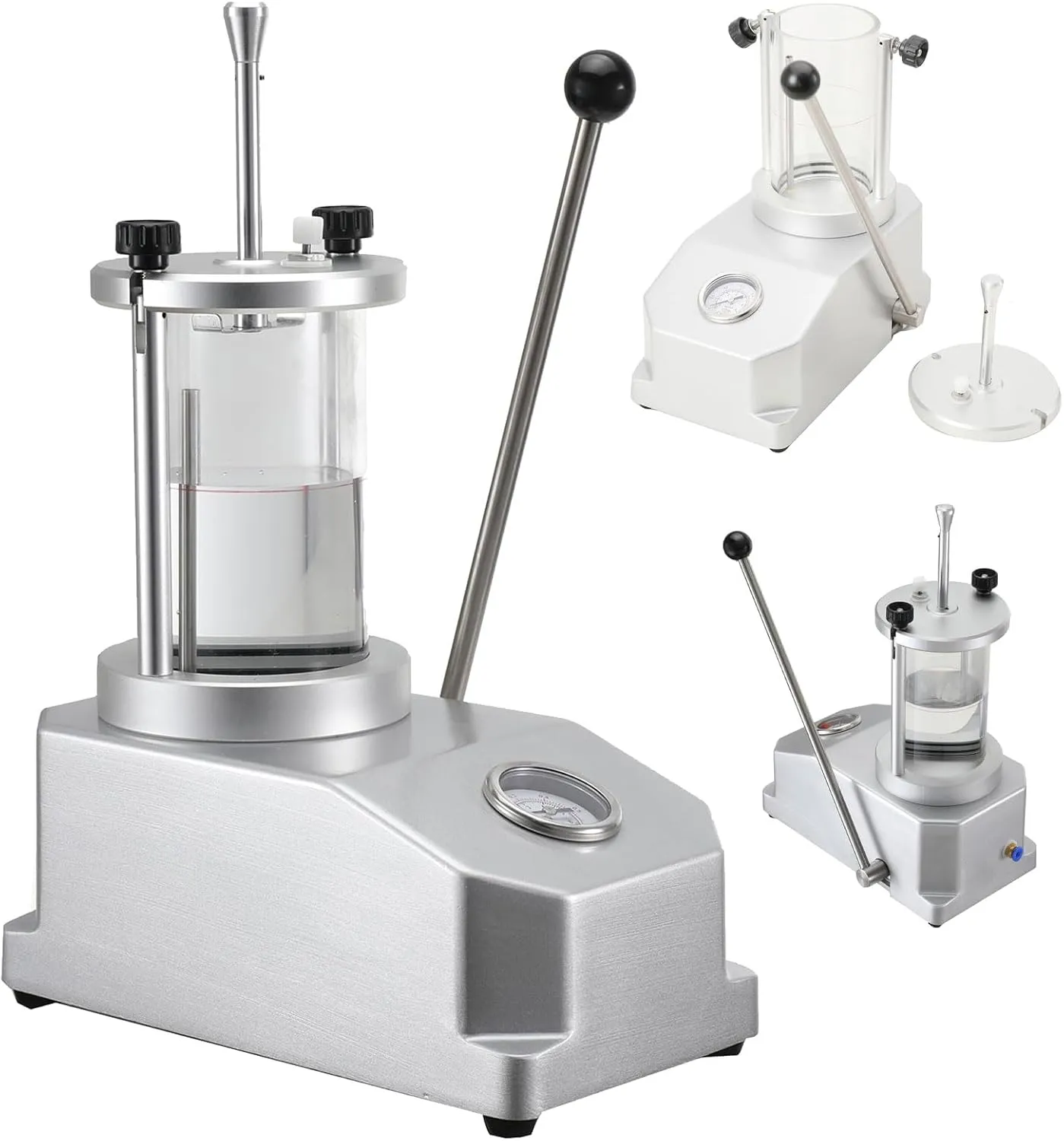

- CLEAR CYLINDER DESIGN:Equipped with a clear cylinder,this watch waterproof testing machine makes it easy to identify areas that may not be waterproof.The transparent design allows users to visually inspect for air bubbles after decompression of the sealed box,ensuring thorough testing.
Specification:
Product name: Watch Waterproof Tester
Color:Silver
Capacity: 2Watches
Pressure Range: 0.3~6bar (0.3~6atm approx.)
External air pressure interface: 6N
Cylinder Maximum Pressure: 10 bar
Cylinder Inside Diameter: 65mm
Cylinder Outer Diameter: 80mm
Cylinder Height: 138mm
Liquid capacity 70*140mm
Rod length: 280mm
Product size: 243*130*282mm
Packaging size: 270*176*312mm
Net weight: 3440g
Gross weight: 3780g
*******
Package Includes:
1*Watch Waterproof Tester
*******
How To Use:
1. Loosen the screws and open the lid of the watch holder.
2. Fill the cylinder with water up to the red line, preferably using distilled water to prevent lime deposits.
3. Hang the test watch on the watch holders/hooks.
4. Close the lid securely and tighten the screws.
5. Shake the pressure lever to increase the pressure to 3 atm, which is the standard of the Swiss watch industry.
6. Wait for 3 minutes to ensure sufficient air enters the test watch.
7. Press down on the watch holder below the water surface to expel any trapped air.
8. Observe carefully: If bubbles escape from the watch case, it indicates poor leakproofness; if no bubbles emerge, the watch is well sealed.
*******
Principle:
Pressurization to the sealed box can simulate the state of the product dozens of meters underwater. Pressure difference between the inside and outside of the product will be generated after the pressure relief of the sealed box. Air bubbles can be visually seen in the leaking product.
